This contemporary Single Family home plan offers a perfect balance of functionality, comfort, and cutting-edge construction. With a total area of 2,541 sq. ft., including a covered patio (286 sq. ft.), porch (74 sq. ft.), and storage area (60 sq. ft.), this design is ideal for modern living and entertaining. The home also includes a spacious 2-car garage (506 sq. ft.), providing ample parking and utility space.

Crafted using Light Gauge Steel Framing (LGSF) and delivered with a BIM-compatible model, this plan ensures precise detailing, durability, and seamless coordination from concept to construction — empowering builders and homeowners to visualize, plan, and build with confidence.

• Comes with a BIM-ready 3D model for accurate visualization and coordination.
• LGSF construction provides superior strength, precision, and sustainability.
• Functional layout perfect for Single Family living or rental units.
• Efficient design reduces material waste and construction time.

Key Features

• • Total Area: 2,541 sq. ft.
    • Covered Patio: 286 sq. ft.
    • Porch: 74 sq. ft.
    • Storage: 60 sq. ft.
    • Garage: 506 sq. ft. (2-Car Garage)
  • Building Category: Single Family Home
  • Bedrooms: 3 Spacious Bedrooms

• Ceiling Height: 10 ft.
• Roof Type: Multi-Slope Roof (Primary Pitch: 4/12)
• Framing Type: LGSF (Light Gauge Steel Framing)

Structural Details

• Exterior Walls: 600S162-43
• Wet Walls: 600S162-43
• Garage Internal Walls: 600S162-43
• Roof Framing: Multi-slope LGSF system designed for precision and long-term performance

Included Drawing Set

• Cover Sheet
• General Notes
• Floor Plan
• Roof Plan

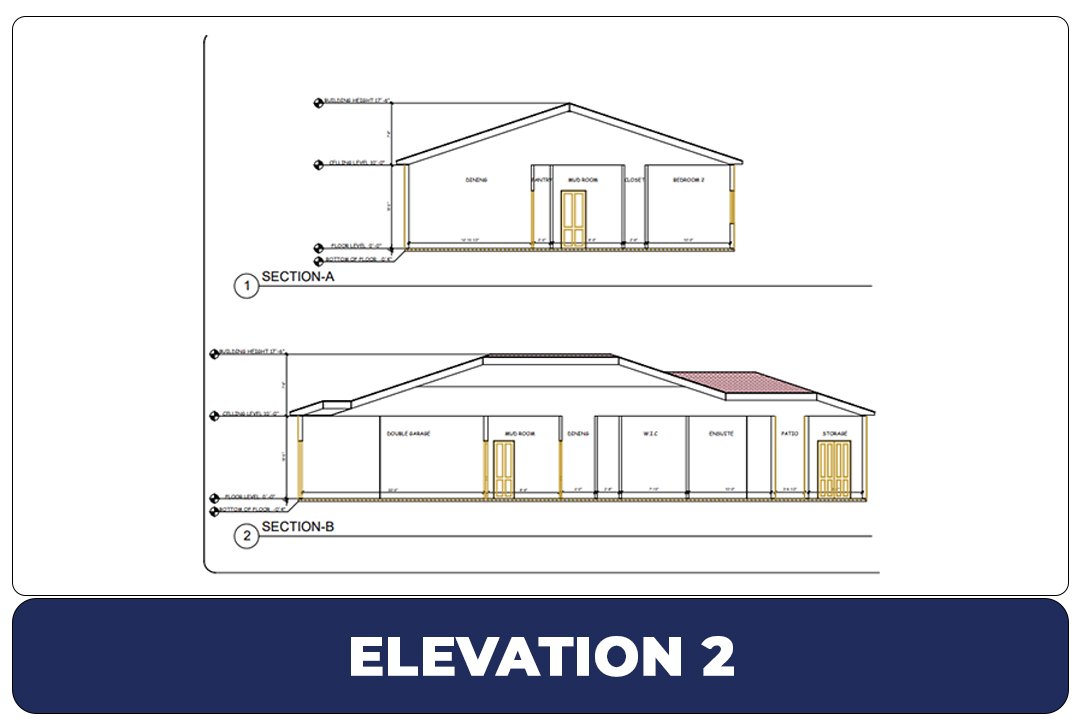

• Sections

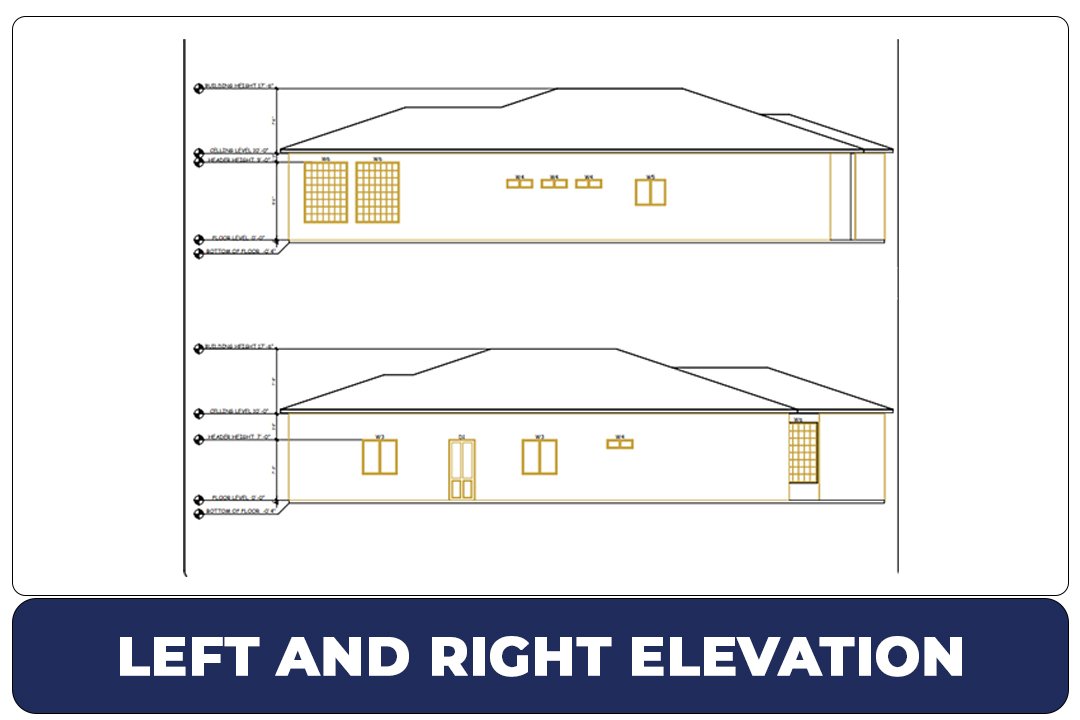

• Elevations
• Door & Window Schedule

Dimensions

• Width: 68’-11”
• Length: 40’-0”

Plan UB000005 is a modern, energy-efficient Single Family home design built with advanced steel framing and BIM technology. Combining style, structure, and smart design, it’s the ideal solution for builders and developers seeking a durable, future-ready home plan that blends functionality with architectural sophistication.
